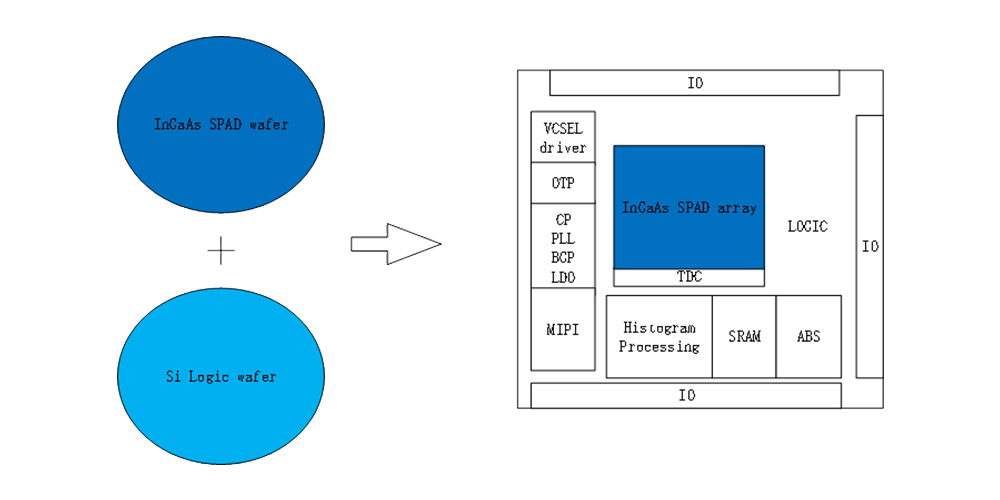

DX517是一款專門為人眼安全打造的堆疊封裝遠距離探測LiDAR芯片。其SPAD采用基于大芯半導體核心知識產權的銦鎵砷材料，可以在1550nm波段實現高探測效率。該芯片將銦鎵砷材料工藝的感光wafer和傳統硅工藝的Logic wafer進行混合型堆疊封裝。該芯片可以使用在自動駕駛汽車、無人機等各種遠距離應用。

• 1550nm InGaAs SPAD
• Hybrid 3D Stack
• 300m long distance detection
• 3D LiDAR technology with high sensitivity SPAD detection
• Delivers high SNR, wide dynamic range and no multi-path reflections
• 10um x 10 um BSI pixels
• 200 x600 SPAD Detection And Ranging pixels
• Fast on-chip histogram processing
• Sub-nanosecond light pulse
• Sunlight on-chip rejection filter and algorithm
• Programmable Repetition rate
